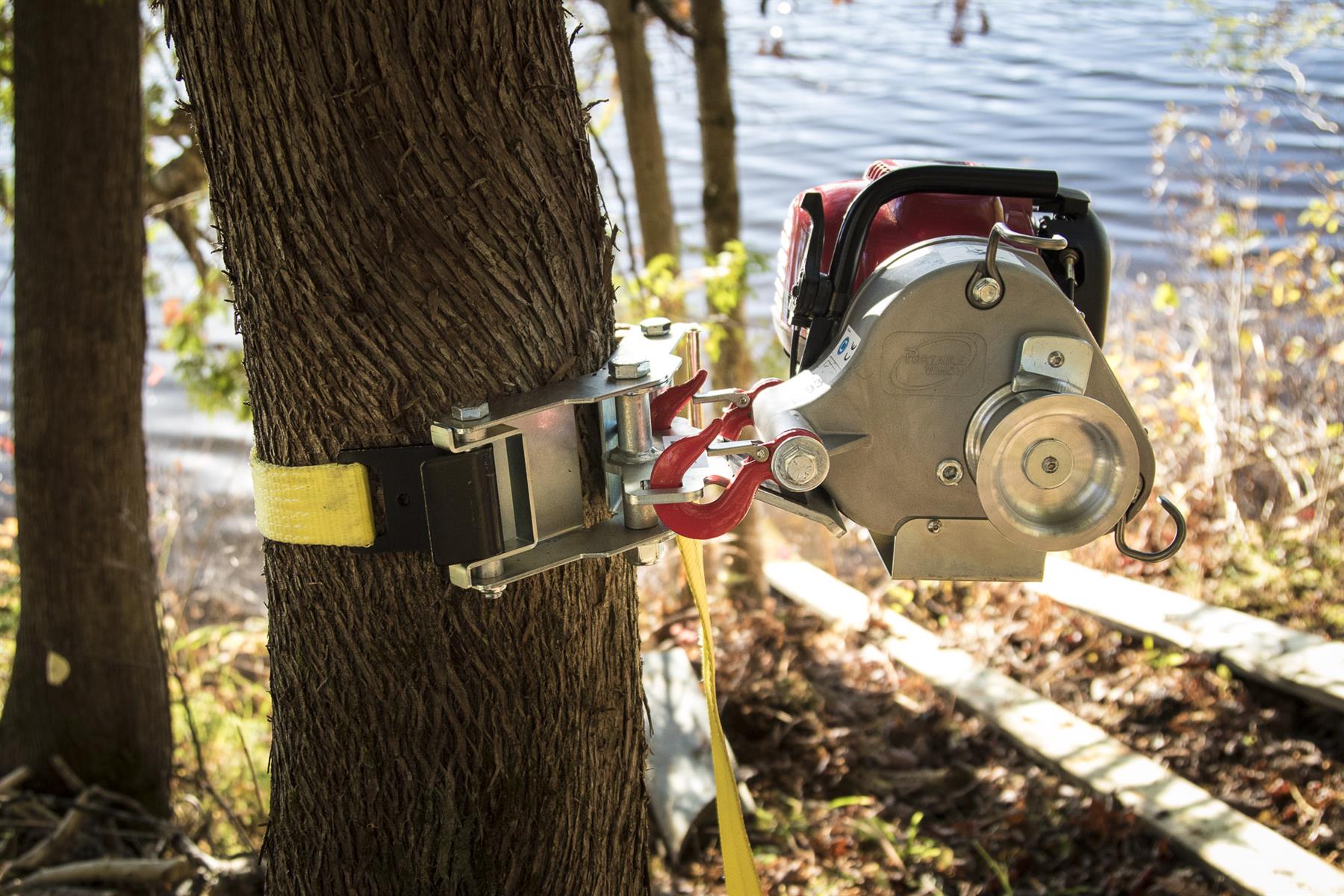

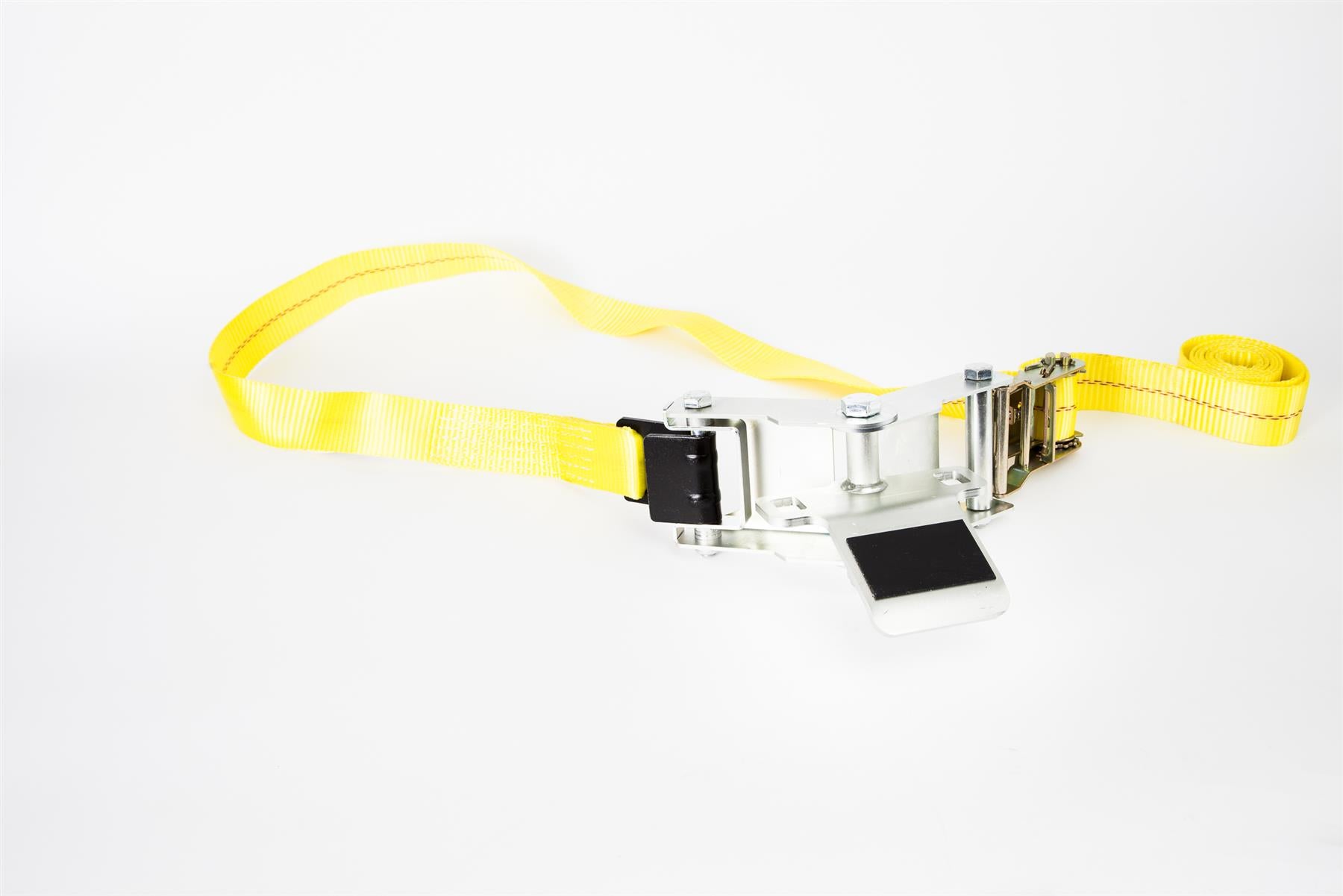

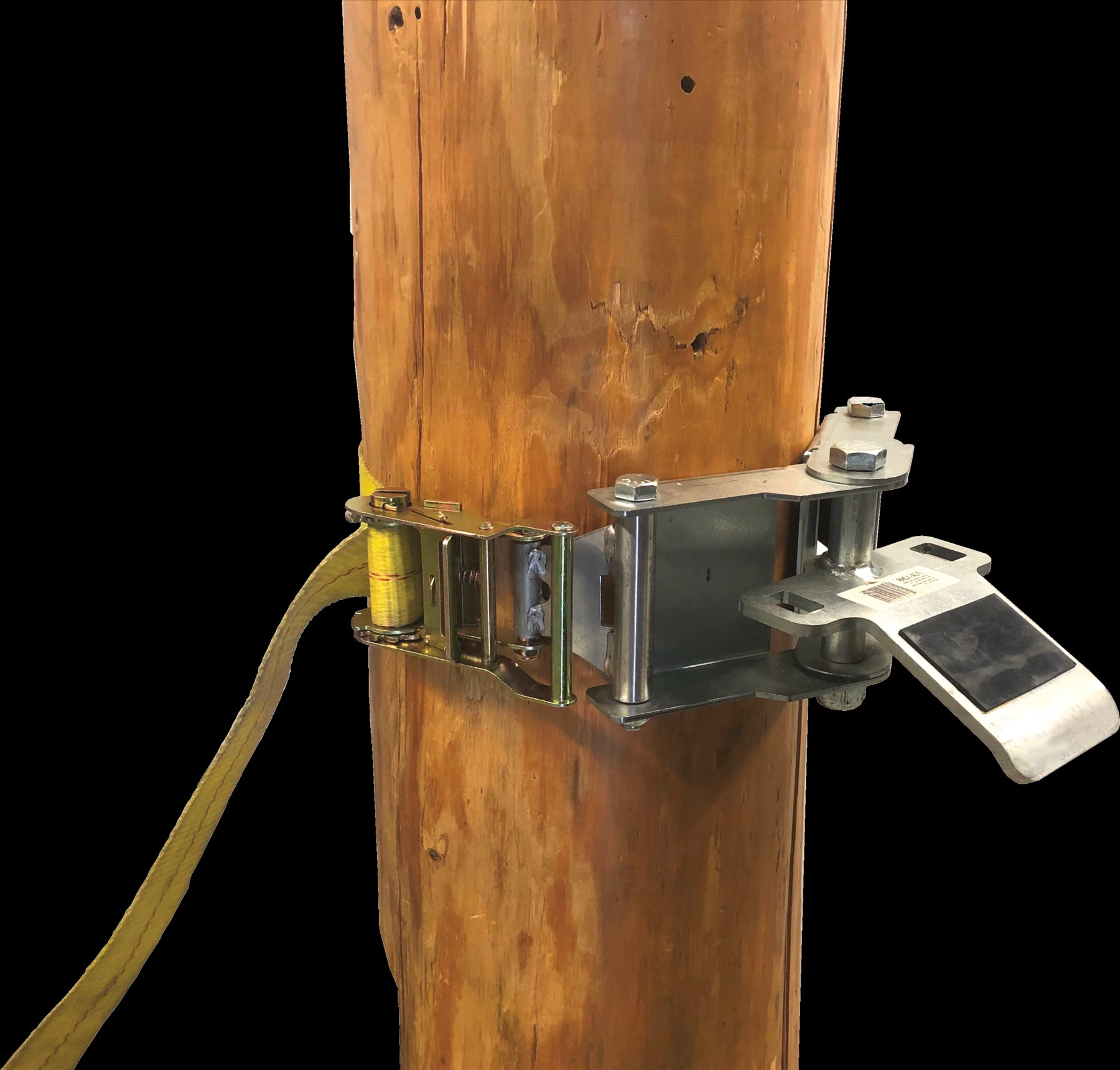

Portable Winch PCA-1269 Tree-Mount Winch Anchoring System

PORTABLE WINCH COMPARISON CHART

View the spec differences between all the Portable Winches that we offer on our website. Use this comparison chart to determine which Portable Winch is best for your needs.

View all of our Portable Winches here.

Once you determine which machine will work for you, then you can figure out if any of the Accessory Kits will be beneficial to youl

MECHANICAL ADVANTAGE BY USING PULLEYS

Check out this video by Portable Winch to learn how to add power to your winch setup by using pulleys below:

Please view all of our Portable Winch Accesories Here.

There is no maximum distance limit to be observed. That’s why we sell ropes of different lengths.

However, when possible, it is a good idea to pull from a distance enabling you to see the load to be pulled clearly and react if necessary.

The GXH-50 engine uses approximately 340 g / kW. At full throttle, under load, the engine develops 1.8 kW.

Gasoline has a specific gravity of about 0.74 (or 740 g / litre), so the engine will consume in one hour: (1.8 x 340) / 740 = 0.827 litre / hour.

The fuel tank, with 1.2 litre capacity will last approximately one hour at full throttle.

But in our experience, one hour of pull is more than a normal day in the woods. But some applications will have different intensities of use.

• Use gasoline without ethanol.
• A filled tank means no condensation - air (and therefore space) in an unfilled tank will create condensation, especially in seasons with good temperature variations.
• If the winch is not started for an extended period (more than 3 months), this can become problematic.
• It's not a bad idea to put stabilizer in gasoline.
• When stopping the winch, let the engine run, close the fuel valve and let it burn;
• Once done, pull on the starter rope to close the valves (until you feel resistance);
• If the exhaust valve is open, air from outside enters the engine, which can cause condensation and rusting of the pistons, which can prevent winch from restarting;
• See the Honda engine manual for more details;
• Tip: When you fill your tank at the pump, it is a good idea to run the first liter in your vehicle, which ensures to empty the gas of the previous customer...
